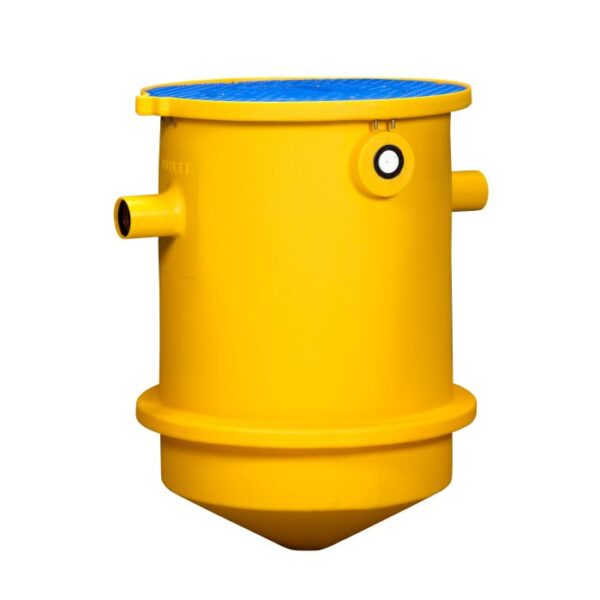

TSS-95 Trapzilla Solids Separator
Price range: $2,868.00 through $3,215.00
Manufacturer Rated Inlet Flow Rate: 150 GPM (9.46 l/s)
Solids Retention Capacity: 95 Gallons (359.61 l)
Material: Rotationally Molded Polyethylene
Thermaco Trapzilla Model No. TSS-95, rotationally molded polyethylene solids separator(s) for in-ground installation, rated at 150 gallons per minute (9.46 l/s) peak flow, 95 gallons (359.61 l) of solids storage capacity, fully removable cover for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent.
TSS-95-ECA:
Includes one extension collar assembly, linear low-density rotationally molded polyethylene in two pieces for field adjustability to optimal installation depth.
TSS-95-SSA:
Included support stand manufactured out of linear low-density rotationally molded polyethylene.
TSS-95-SSA Specification Sheet
TSS-95-ECA Specification Sheet
Installation Drawing for Traffic Rated (H20) Installations
TSS Installation & Operation Manual
Trapzilla Solids Separator 2-Page Flyer
TSS-95 Specification Sheet
Trapzilla Brochure 2022
| Weight | 110 lbs |
|---|---|
| Dimensions | N/A |
| Model | TSS-95, TSS-95-ECA, TSS-95-SSA |
Choose the CAD format first and then click “Download CAD”
You may also like…
-

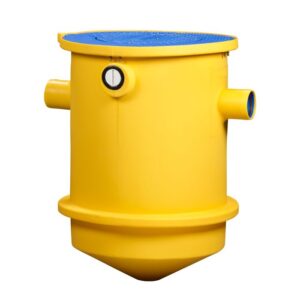

TSS-95-6 Trapzilla Solids Separator with 6″ Inlet/Outlet
Price range: $3,166.00 through $3,513.00Select options This product has multiple variants. The options may be chosen on the product page -
TZSP-40 Trapzilla Sample Port
Price range: $622.00 through $1,420.00Select options This product has multiple variants. The options may be chosen on the product page -
TZ-600 Trapzilla Grease Interceptor
Price range: $2,868.00 through $3,215.00Select options This product has multiple variants. The options may be chosen on the product page -
TZSP-48 Trapzilla Sample Port
Price range: $667.00 through $1,475.00Select options This product has multiple variants. The options may be chosen on the product page
Related products
-

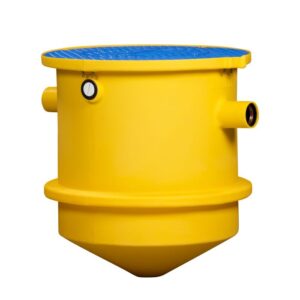

TSS-70 Trapzilla Solids Separator
Price range: $2,554.00 through $2,901.00Select options This product has multiple variants. The options may be chosen on the product page -

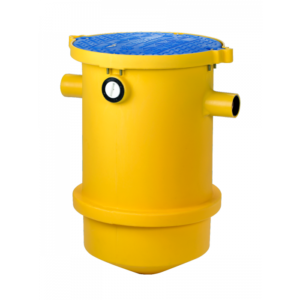

TSS-27 Trapzilla Solids Separator
Price range: $1,543.00 through $1,938.00Select options This product has multiple variants. The options may be chosen on the product page -

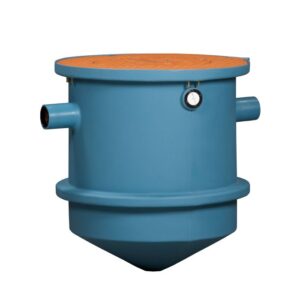

TZ-400 Trapzilla Grease Interceptor
Price range: $2,554.00 through $2,901.00Select options This product has multiple variants. The options may be chosen on the product page -

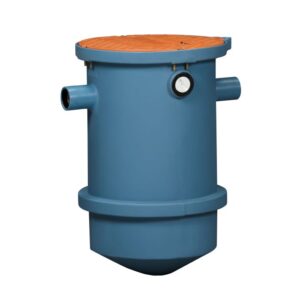

TZ-160 Trapzilla Grease Interceptor
