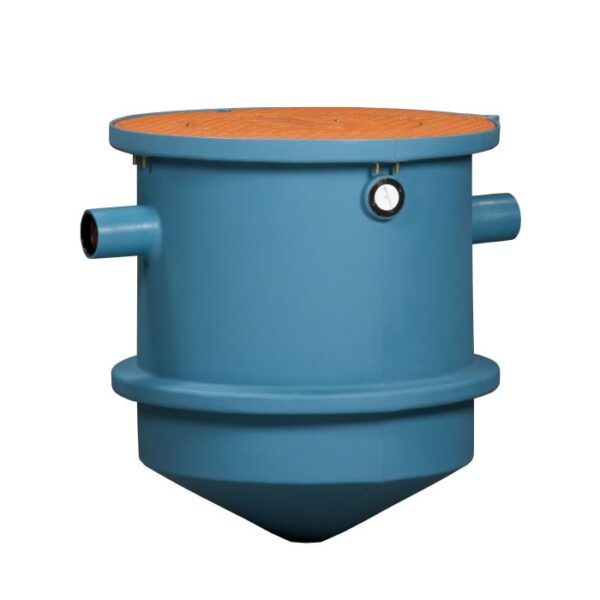

TZ-400 Trapzilla Grease Interceptor

Maximum Inlet Flow Rate: 75 GPM (4.73 l/s)

Grease Retention Capacity: 405 Pounds (183 Kg)

Material: Rotationally Molded Polyethylene

TZ-400: Product Weight: 71 Pounds (33 Kg)
Thermaco Trapzilla Model No. TZ-400, linear low-density rotationally molded polyethylene grease and oil separator(s) for below or above-ground installation, shall be ASME A112.14.3 Rated at 75 gallons (4.73 l/s) per minute peak flow, 405 pounds (183 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, fully removable cover for grease and solids removal, integral non- floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners.

Unit may also be listed as TZ400

TZ-400-ECA: Product Weight: 81 Pounds (37 Kg)
Thermaco Trapzilla Model No. TZ-400-ECA, linear low-density rotationally molded polyethylene grease and oil separator(s) for in-ground installation, shall be ASME A112.14.3 Rated at 75 gallons (4.73 l/s) per minute peak flow, 405 pounds (183 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, fully removable lid for access by grease pump truck for grease and solids removal, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow di- verter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners. Includes one extension collar assembly, linear low-density rotationally molded polyethylene in two pieces for field adjustability to optimal installation depth.

Unit may also be listed as TZ400 or TZ400ECA

TZ-400-SSA: Product Weight: 91 Pounds (42 Kg)
Thermaco Trapzilla Model No. TZ-400-SSA, linear low-density rotationally molded polyethylene grease and oil separator(s) for above-ground installation, shall be ASME A112.14.3 Rated at 75 gallons (4.73 l/s) per minute peak flow, 405 pounds (183 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, fully removable lid for access by grease pump truck for grease and solids removal, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow di- verter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners. Included support stand manufactured out of linear low-density rotationally molded polyethylene.

Unit may also be listed as TZ400 or TZ400SSA
