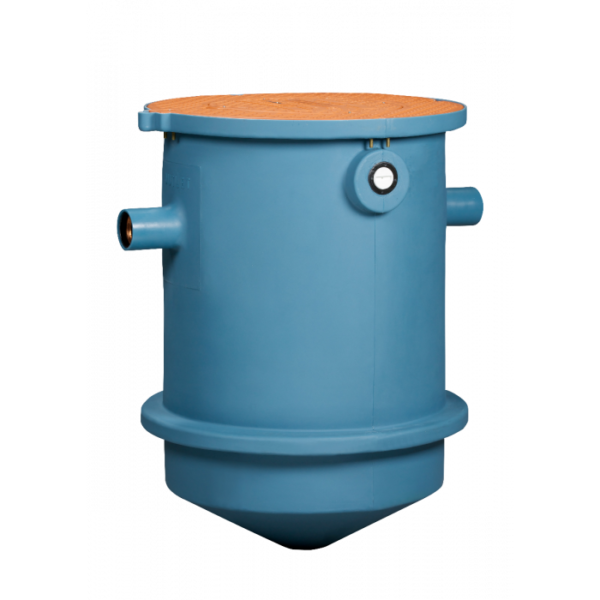

TZ-525 Trapzilla Grease Interceptor

ASME A112.14.3 (Tested) Flow Rate: 50 GPM (3.15 l/s)

Grease Retention Capacity: 525 Pounds (238 Kg)

Material: Rotationally Molded Polyethylene

Product Weight: 84 Pounds (38 Kg)

Thermaco Trapzilla Model TZ-525 is a rotationally molded polyethylene grease interceptor for above or below ground installation. The TZ-525 has a 99% grease separation rating at 50 GPM (3.15 l/s) with 525 lbs (238.1 Kg, 71.9 gal, 272.2 l) of total grease storage capacity.

Key Features:

• Removable cover for ease of maintenance
• Built-in anti-flotation anchor ring for in-ground installation
• Integral horizontal baffle to minimize turblence as new flows enter the unit
• Laminar inlet flow diverter to slow the flow of water down
• Integral vessel vent to regulate pressure inside unit
• Separate storage compartments for grease and heavier than water solids
• Sloping conical bottom for solids retention
• Single tank construction with an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points
• Integral sewer gas trap

TZ-525-ECA:
Thermaco Trapzilla Model TZ-525-ECA is a rotationally molded polyethylene grease interceptor for below ground installation. This model comes with an adjustable extension collar/riser up to 18″. Additional riser can be purchased (SKU: ECA-TZ-29). The TZ-525-ECA has a 99% grease separation rating at 50 GPM (3.15 l/s) with 525 lbs (238.1 Kg, 71.9 gal, 272.2 l) of total grease storage capacity.

Key Features:

• Adjustable extension collar/riser up to 18″ (additional riser can be purchased, SKU: ECA-TZ-29)
• Removable cover for ease of maintenance
• Built-in anti-flotation anchor ring for in-ground installation
• Integral horizontal baffle to minimize turblence as new flows enter the unit
• Laminar inlet flow diverter to slow the flow of water down
• Integral vessel vent to regulate pressure inside unit
• Separate storage compartments for grease and heavier than water solids
• Sloping conical bottom for solids retention
• Single tank construction with an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points
• Integral sewer gas trap

TZ-525-SSA:
Thermaco Trapzilla Model TZ-525-SSA is a rotationally molded polyethylene grease interceptor for below ground installation. This model comes with a support stand, allowing the unit to sit on the ground. The TZ-525-SSA has a 99% grease separation rating at 50 GPM (3.15 l/s) with 525 lbs (238.1 Kg, 71.9 gal, 272.2 l) of total grease storage capacity.

Key Features:

• Comes with a support stand, allowing the unit to sit on the ground
• Removable cover for ease of maintenance
• Built-in anti-flotation anchor ring for in-ground installation
• Integral horizontal baffle to minimize turbulence as new flows enter the unit
• Laminar inlet flow diverter to slow the flow of water down
• Integral vessel vent to regulate pressure inside unit
• Separate storage compartments for grease and heavier than water solids
• Sloping conical bottom for solids retention
• Single tank construction with an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points
• Integral sewer gas trap
